As we know, COF = IC Chip stick on the flex cable.
So on the appearance of this COF P30Lite, we can see the IC chip is on the flex clearly, so most of the people would just check it by appearance , but dont know the exact different between COF and COG.

[ux_image id=”1754″]

Let’s check out the picture here.
Firstly,
It’s about the backlight , these two different quality screen is stand for warm color display and cold color dispaly in the market.

[ux_image id=”1753″]

Secondly,
About the thickness, COF bring us to best experienced as we can see the test result.

[ux_image id=”1750″]

Third,
Also about the inside glass display size, we can see clearly by the picture.



And for P30Lite,P40Lite etc,for price of these two technology, COF is like double the price of COG, so that’s why there is a FAKE COF in the market.

Because COF sounds like more better quality? and seems like COG is too bad to the people ? actually not really, these two technology both are just fine , just stand for different technology, COF not stand for the best quality, COG not stand for the bad quality.

But so ,when you feel a COF looks pretty like a COG screen, you can just broken the IC chip on the flex and if the screen is still working fine ,then it does mean this is a FAKE COF screen, because the IC chip on COG flex is like a decoration and pretend a costly COF screen so to have more profit for the seller.

[ux_menu divider=”solid”] [ux_menu_link text=”What’s the different on these“TI Gas gauge chip”battery?” icon=”icon-angle-right” label=”label-new” post=”1239″ target=”_blank”] [ux_menu_link text=”What’s “TI” quality battery” icon=”icon-angle-right” label=”label-new” post=”1394″ target=”_blank”] [ux_menu_link text=”Explanation about Brand New BMS Flex/TI gas gauge BMS FLEX and MCU FLEX Battery” icon=”icon-angle-right” label=”label-new” post=”1430″ target=”_blank”] [ux_menu_link text=”What make StellarXcell Battery better?” icon=”icon-angle-right” label=”label-new” post=”1492″ target=”_blank”] [/ux_menu]

[ux_menu divider=”solid”] [ux_menu_link text=”What’s the different on these“TI Gas gauge chip”battery?” icon=”icon-angle-right” label=”label-new” post=”1239″ target=”_blank”] [ux_menu_link text=”What’s “TI” quality battery” icon=”icon-angle-right” label=”label-new” post=”1394″ target=”_blank”] [ux_menu_link text=”What’s the different on new technology battery and battery cell+ spot welding?” icon=”icon-angle-right” label=”label-new” post=”1236″ target=”_blank”] [ux_menu_link text=”Explanation about Brand New BMS Flex/TI gas gauge BMS FLEX and MCU FLEX Battery” icon=”icon-angle-right” label=”label-new” post=”1430″ target=”_blank”] [/ux_menu]

[title style=”center” text=”Parts 1″] [row] [col span=”6″ span__sm=”12″] [ux_image id=”1498″ image_size=”medium”] [/col] [col span=”6″ span__sm=”12″]

1. Gas Gauge IC-TI A27546 A3 (Use on IP8-IPXsmax)

Gas Gauge IC is like BMS barain to control below function

1. Battery Healthy
2. Battery Capacity
3. Charging Wattage
4. Cycle Temperature Inspection
5. Temperature Sensing

Advantage

1. Speed Calculation
2. Lower Resistance
3. Communication between the device and the gasgauge chip

[/col] [/row] [title style=”center” text=”Parts 2″] [row] [col span=”6″ span__sm=”12″]

2.Voltage Resistor 5 mΩ

Using a minimum 5mΩ resistor ensures accurate and reliable battery monitoring.

Lower resistance not only enhances battery management but also improves overall performance and safety standards.

[/col] [col span=”6″ span__sm=”12″] [ux_image id=”1500″ image_size=”medium”] [/col] [/row] [title style=”center” text=”Parts 3″] [row] [col span=”6″ span__sm=”12″] [ux_image id=”1501″ image_size=”medium”] [ux_image id=”1502″] [/col] [col span=”6″ span__sm=”12″]

3.Newer Protection IC with a low internal resistance of 5.7mΩ improving the overall safety of the battery.

1.Overcharging

2.Deep Discharging

3.Short Circuits



Bad protection IC to meet

1.Swelling

2.Leakage

3.Explosions

[/col] [/row] [title style=”center” text=”Parts 4″] [row] [col span=”6″ span__sm=”12″]

4.FPC Connector Comparable to OEM quality

1.Nearly identical to the OEM FPC Connector Size

2.High Quality Materials

3.Great Reliability

4.Long Life

[/col] [col span=”6″ span__sm=”12″] [ux_image id=”1503″ image_size=”medium”] [/col] [/row] [title style=”center” text=”Parts 5″] [row] [col span=”6″ span__sm=”12″] [ux_image id=”1506″] [/col] [col span=”6″ span__sm=”12″]

5.Temperature Control 55℃ or below!

Achieve optimal battery life and safety with precise temperature control, ensuring continuous charging at temperatures of 55°C or lower.

This feature prevents potential hazards, thereby enhancing device performance and user safety.

[/col] [/row] [title style=”center” text=”Parts 6″] [row] [col span=”6″ span__sm=”12″]

6.The top-level MCU establishes communication with the device CPU to obtain all the information collected by the fuel gauge chip

[/col] [col span=”6″ span__sm=”12″] [ux_image id=”1507″ image_size=”medium”] [/col] [/row] [ux_menu divider=”solid”] [ux_menu_link text=”What’s the different on these“TI Gas gauge chip”battery?” icon=”icon-angle-right” label=”label-new” post=”1239″ target=”_blank”] [ux_menu_link text=”What’s “TI” quality battery” icon=”icon-angle-right” label=”label-new” post=”1394″ target=”_blank”] [ux_menu_link text=”StellarXcell Unlock and StellarXcell Ultra battery, WHAT TO BUY?” icon=”icon-angle-right” label=”label-new” post=”1695″ target=”_blank”] [ux_menu_link text=”Explanation about Brand New BMS Flex/TI gas gauge BMS FLEX and MCU FLEX Battery” icon=”icon-angle-right” label=”label-new” post=”1430″ target=”_blank”] [/ux_menu]

As we all know, there is huge price difference on different battery quality, and every supplier would just claim their quality is the best..  But what’s really is the exact different on these battery?

---

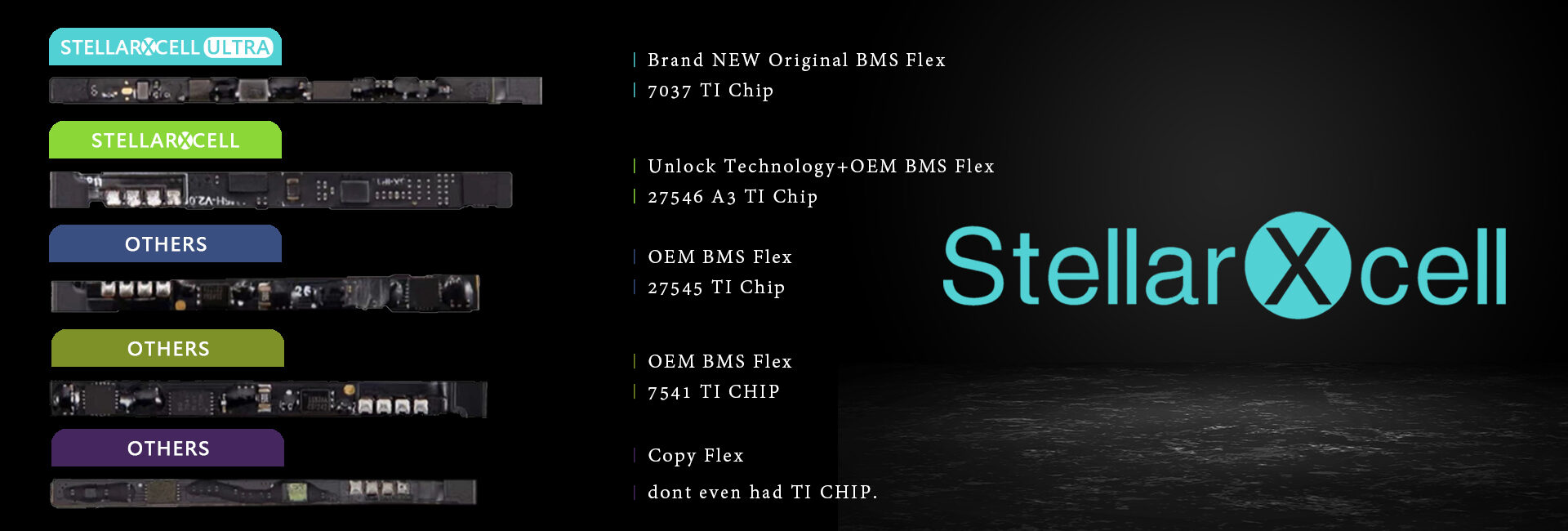

Here we have comparison for:

1.Brand New Original 100% 0 charging times BMS flex.

2.OEM TI Gas gauge BMS flex.

3.MCU BMS Flex.

[ux_slider] [ux_image id=”1433″] [/ux_slider] [ux_text text_align=”left”]

The key point is more about “Gas Gauge chip” and “Lithium protection chip” and “Internal resistance chip”..

These three chips need to cooperate well at the together to ensure that the battery has good metering effect/temperature control effect when in daily using.

The “gas gauge chip” is mainly responsible for calculating the battery’s power, ensuring that the battery automatically learns and ensures that the power is correct,the “lithium protection Chip” uses the calculation of the “gas gauge chip” to control battery temperature and protection when battery is charging ,there is also an “internal resistance chip” to control and reduce the power of the battery, otherwise the sampling current accuracy will become worse，it is known that Apple’s original protective board uses a 1 milliohm high-precision resistor.

But the worsting thing is , most of the battery in the market is using cheapest MCU Flex, and MCU BMS Flex dont even have these chip onto the BMS Flex, there is only a MCU to contrl charging and discharging, so that will cause the battery , so by this quality, it will 99% cause the battery is swell and very short battery life ….

This result is because the market competition is too bigger, and people often buy batteries mainly based on price, causing sellers to further reduce the quality of batteries in order to obtain more orders and market share.

At the same time, this is why we provide StellarXcell batteries,we want to provide this industry with batteries that are truly cost-effective and of very stable quality.

Our StellarXcell Ultra is using Brand NEW 100% Original Flex and high capacity battery, which will be a battery that is more durable than the original quality.

[/ux_text] [ux_menu divider=”solid”] [ux_menu_link text=”What’s the different on these“TI Gas gauge chip”battery?” icon=”icon-angle-right” label=”label-new” post=”1239″ target=”_blank”] [ux_menu_link text=”StellarXcell Unlock and StellarXcell Ultra battery, WHAT TO BUY?” icon=”icon-angle-right” label=”label-new” post=”1695″ target=”_blank”] [ux_menu_link text=”What’s the different on new technology battery and battery cell+ spot welding?” icon=”icon-angle-right” label=”label-new” post=”1236″ target=”_blank”] [ux_menu_link text=”What’s “TI” quality battery” icon=”icon-angle-right” label=”label-new” post=”1394″ target=”_blank”] [/ux_menu]

     At present, many customers think that using new technology battery/spot welding is the only way to solve pop-up message, but do we really understand the difference between them? Well, please follow my footsteps and learn more about their differences!!!!

[title style=”center” text=”How it works?” tag_name=”h4″ color=”rgb(0, 175, 253)”]

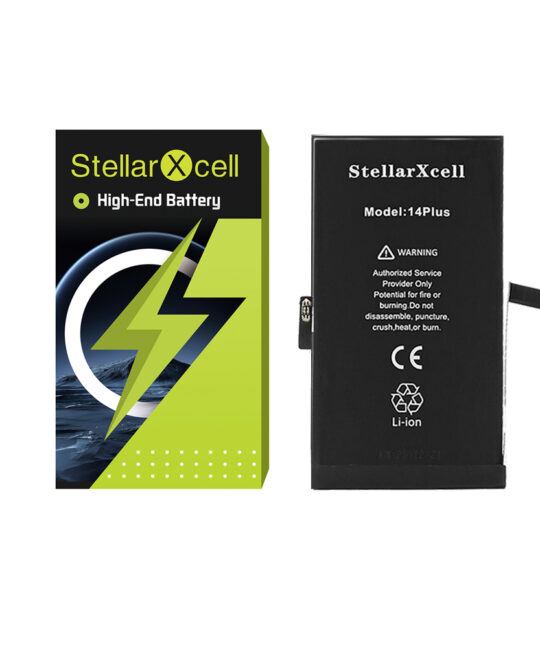

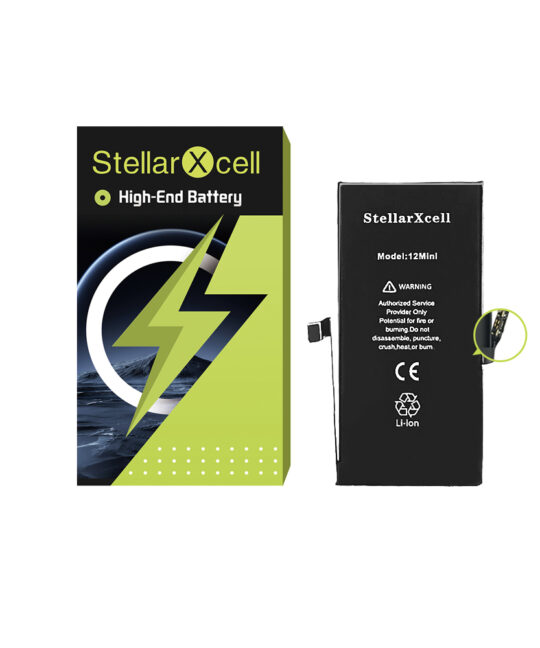

New Technology Battery: 1.Don’t need to do spot-welding / 2.Automatic battery programming.

[ux_image id=”1568″ image_size=”original” width=”32″ height=”125%”]

Spot Welding Battery: Battery Cell+ older original BMS to do spot-welding.

[ux_image id=”1447″ image_size=”original” width=”32″ height=”125%”]

Through these two pictures, we have a rough understanding of the two methods of replacing the battery. But to give you a deeper understanding, here are the advantages and disadvantages of new technology battery compared to spot welding battery.

New Technology Battery:

Advantage

1. No spot welding is required, no professional welding equipment or personnel is required, only scissors arency needed, very high efficiency.

2.The new BMS is accurately measuredand can fully use all the capacity of the battery core.

3.Real battery health, not fake data.

Disadvantage

Due to the relatively complex process, the cost of this battery will be higher than battery cell + spot-welding(attery cell spot-welding,there only the cost of battery cells).



Spot Welding Battery:

Advantage

1.Lower cost needs. (The cost only battery cell withou BMS flex)

Disadvantage

1.Require spot-welding machine.

2.Require some phone repair experienced .

3.The capacity may not fully use if Older original BMS is over times used.(This will be explained in detail below.)

[title style=”center” text=”Why we can’t use the full battery capacity after we spot welding the battery ? But Why the New Technology can use the battery full capacity?” tag_name=”h4″ color=”rgb(0, 175, 253)”]

   As far as we know , Apple double-encrypts the chips in its models, the underlying data cannot be written. For models below IPhone 11, We can directly modify the underlying code to match the battery cell, and it also dismiss the non-original message.

This is why when the battery exceeds the number of charges, the voltage will be limited.(This will be explained in detail below.)

Data Information:
For example,

IP11/12 series standard limit voltage is 4.45V.

IP13/14 series standard limit voltage is 4.47V.



When the charging times and battery cycles times reaches to a number , like 300 times, 500 times, 1000 times,the battery BMS will forcibly reduce the fully charged voltage to prevent battery damage due to overcharging.

(that’s the reason why apple will remind us to change a new battery when the battery healthy is lower than 80%)



So when the battery old original BMS have already over-used in the last battery,it’ll limit the actual usage capacity of new battery cell to varying degrees.



When the older original BMS flex charging times more than 300 times , capacity loss is around 7%

When the older original BMS flex charging times more than 1000 times, Capacity loss is around 13%

[ux_image id=”1405″ image_size=”original” width=”32″ height=”100%”] [ux_image id=”1406″ image_size=”original” width=”32″ height=”100%”]

New Technology Battery: The old BMS is only used for booting and does not directly participate in the work. The data is all operated by the new BMS with a cycle count of 0, so it can use the full battery cell capacity.

Spot Welding Battery: The BMS is still keep high cycles number, so it can’t use the full battery cell capacity.

[ux_menu divider=”solid”] [ux_menu_link text=”Explanation about Brand New BMS Flex/TI gas gauge BMS FLEX and MCU FLEX Battery” icon=”icon-angle-right” label=”label-new” post=”1430″] [ux_menu_link text=”StellarXcell Unlock and StellarXcell Ultra battery, WHAT TO BUY?” icon=”icon-angle-right” label=”label-new” post=”1695″ target=”_blank”] [ux_menu_link text=”What’s “TI” quality battery” icon=”icon-angle-right” label=”label-new” post=”1394″ target=”_blank”] [ux_menu_link text=”What’s the different on these“TI Gas gauge chip”battery?” icon=”icon-angle-right” label=”label-new” post=”1239″ target=”_blank”] [/ux_menu]

[ux_image id=”1687″ image_size=”original”] [ux_image id=”1689″ image_size=”original”] [ux_image id=”1686″ image_size=”original”] [ux_image id=”1690″] [ux_image id=”1688″] [ux_image id=”1684″] [ux_text font_size=”1.2″ text_align=”center”]

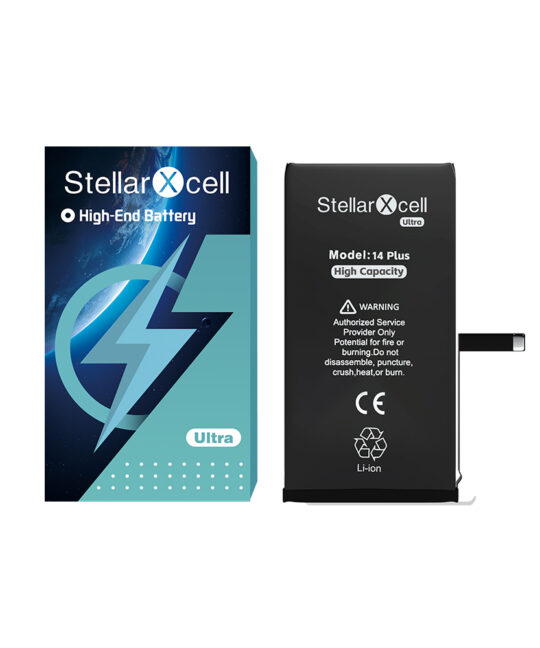

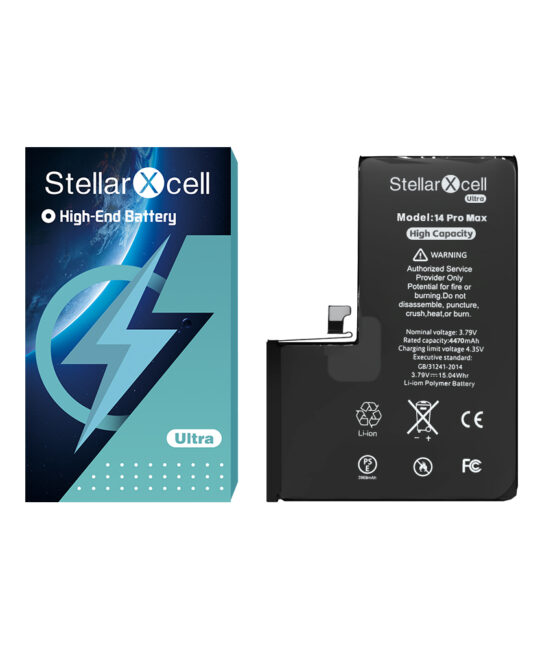

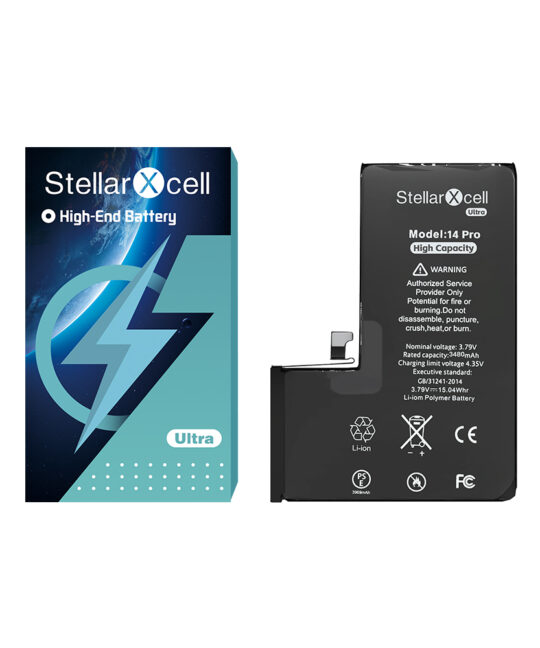

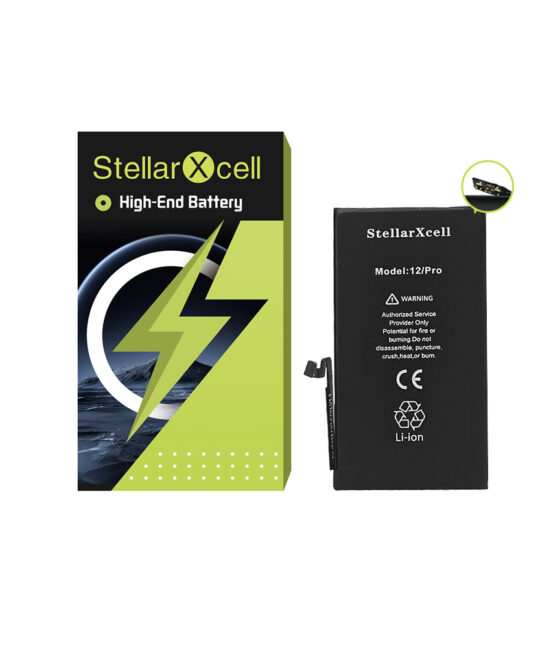

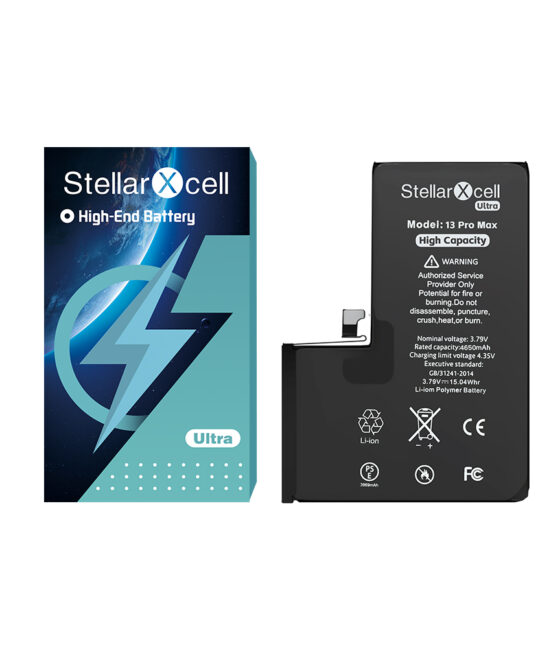

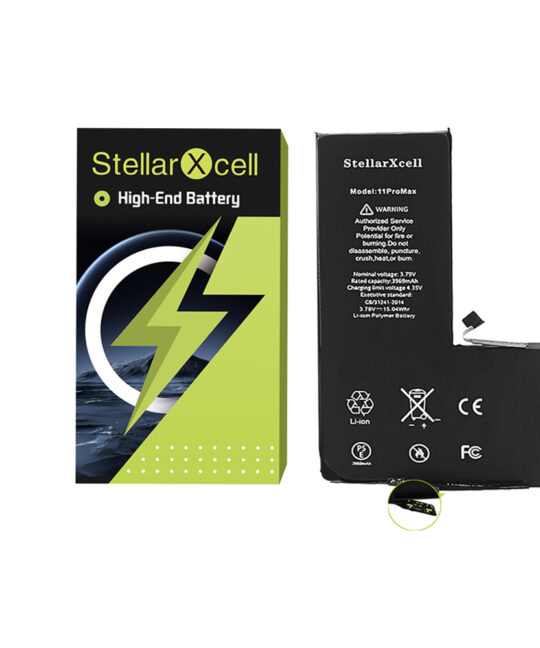

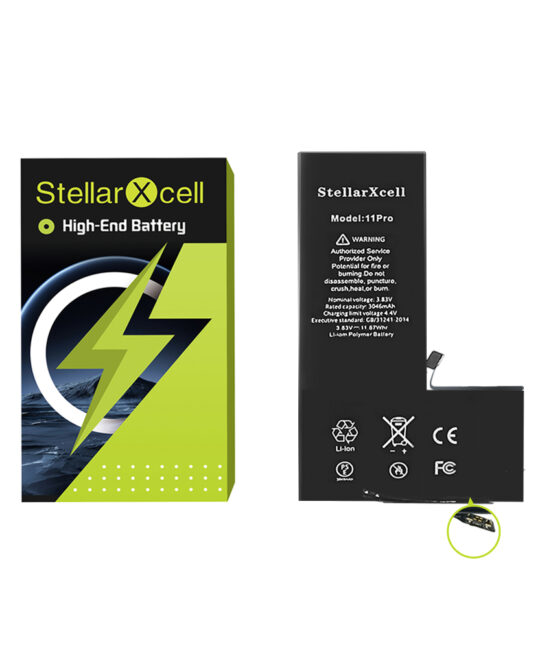

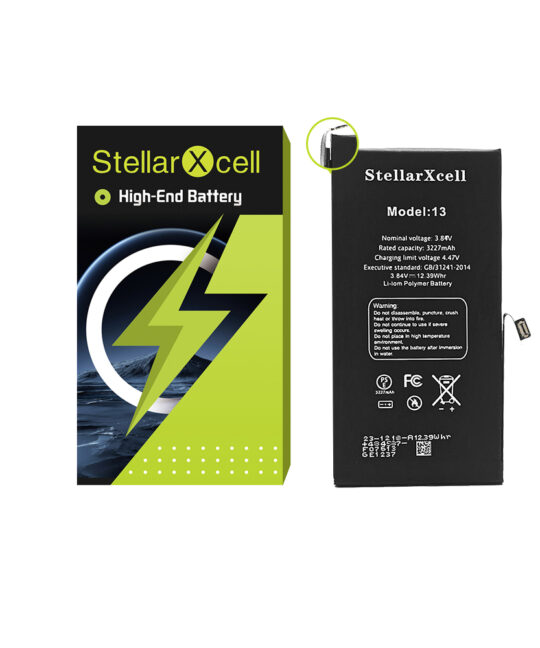

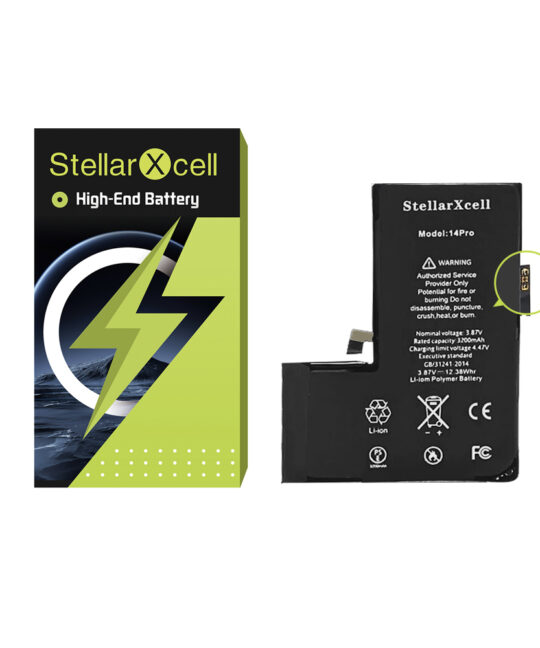

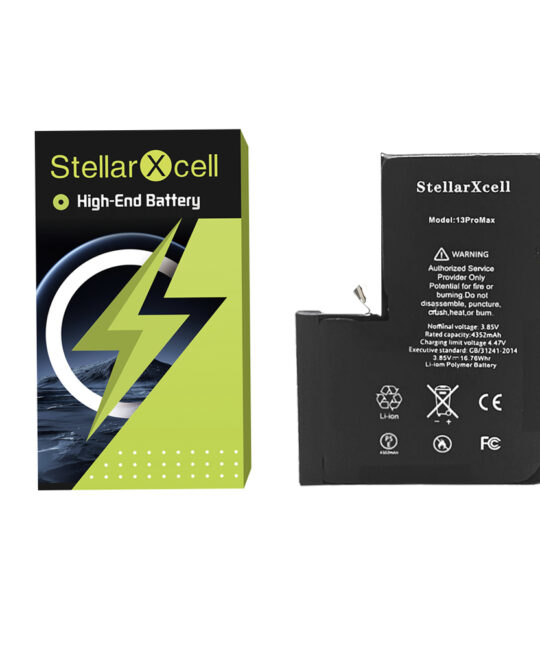

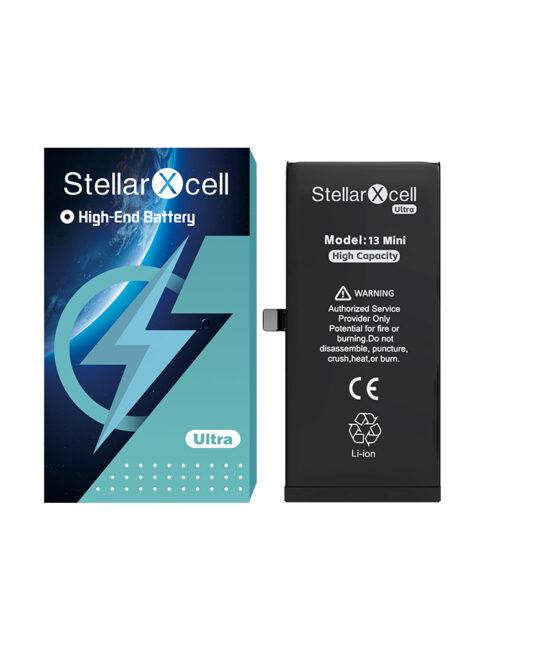

StellarXcell Ultra batteries use brandnew 100% original BMS flex + high capacity battery cell.

The batteries are perfectly compatible with phone and truly zero cycles for all batteries,the best solution for third-partybatteries in the market.

[/ux_text] [row v_align=”middle”] [col span=”6″ span__sm=”12″] [ux_image id=”1476″ image_size=”original” height=”100%”] [/col] [col span=”6″ span__sm=”12″] [ux_text text_align=”center” text_color=”rgb(0, 175, 253)”]

Tips about capacity

[/ux_text]

  Because on original program Tl 7037 for lP11-14Promax battery, the capacity date can not be changed due to Apple is locked, so we can only see 100% capacity on 3u tools, but it does not affect the battery release of the full  capacity of the battery, it can easily and gradually increase in daily using ,the actual capacity is more than 110%

[/col] [/row] [row] [col span=”6″ span__sm=”12″] [ux_image id=”1479″ image_size=”original” width=”86″] [/col] [col span=”6″ span__sm=”12″] [ux_text text_align=”center” text_color=”rgb(0, 175, 253)”]

Super Long Battery Life !

[/ux_text] [ux_image id=”1482″] [/col] [/row] [ux_text text_align=”center” text_color=”rgb(0, 175, 253)”]

About battery healthy setting

[/ux_text]

On lPXr and all above models.

We can’t check battery healthy onsetting,it’ll show “unknow part”, but we can check it through by 3u tools APP.

[row] [col span=”6″ span__sm=”12″] [ux_image id=”1488″ image_size=”original”] [/col] [col span=”6″ span__sm=”12″] [ux_image id=”1487″ image_size=”original”] [/col] [/row]
